Slimline 50 with Fixed Welded Arms
The Slimline 50 is designed for situations where you need to fix directly into timber studs behind cladding.With welded arms running down the wall, it provides essential structural support while maintaining a clean, minimal look.the arms are welded to the frame, giving you the strength you need with fewer visible fixings.Ideal for installations where fixing options are limited,the Slimline 50 delivers a sleek appearance without compromising on stability or performance.
Ideal for cladded walls
Designed for fixing directly into timber studs behind cladding
Fully welded aluminium frame
Strong 50x50mm box section for durability
Welded arm design
Arms welded to the frame at each end — and centre for wider spans — for a sleek, minimal look
Custom-made
Custom-made with up to 1065mm projection and widths up to 5 metres
Made to suit stud layout
Arms fix into timber studs, with awning width custom-made to match stud positions
Slimline 50

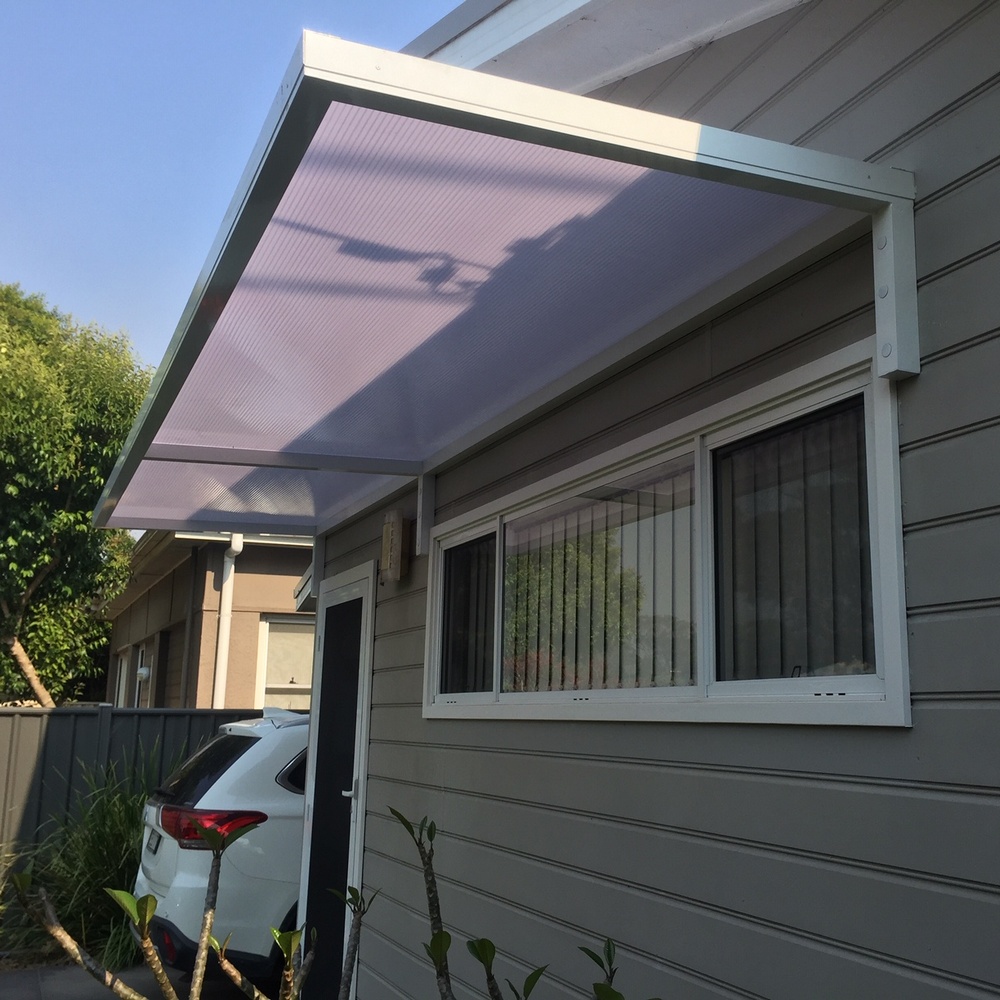

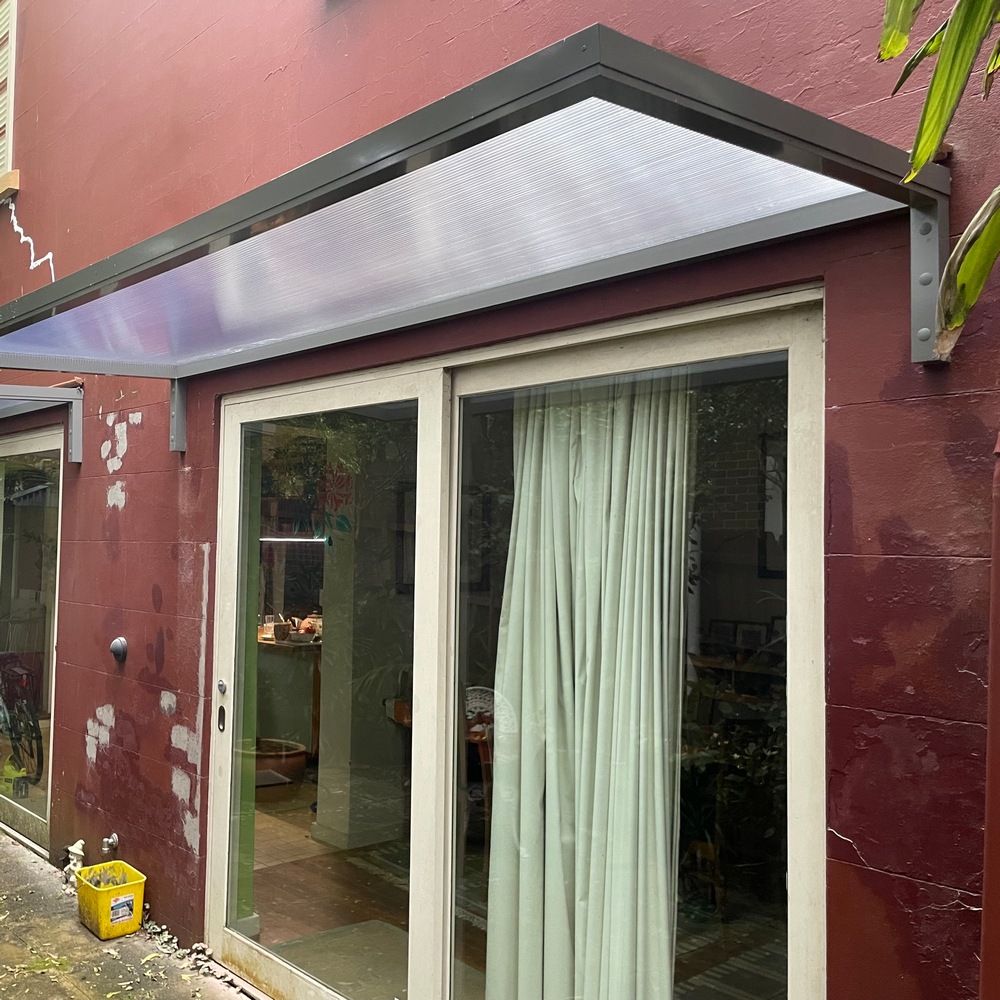

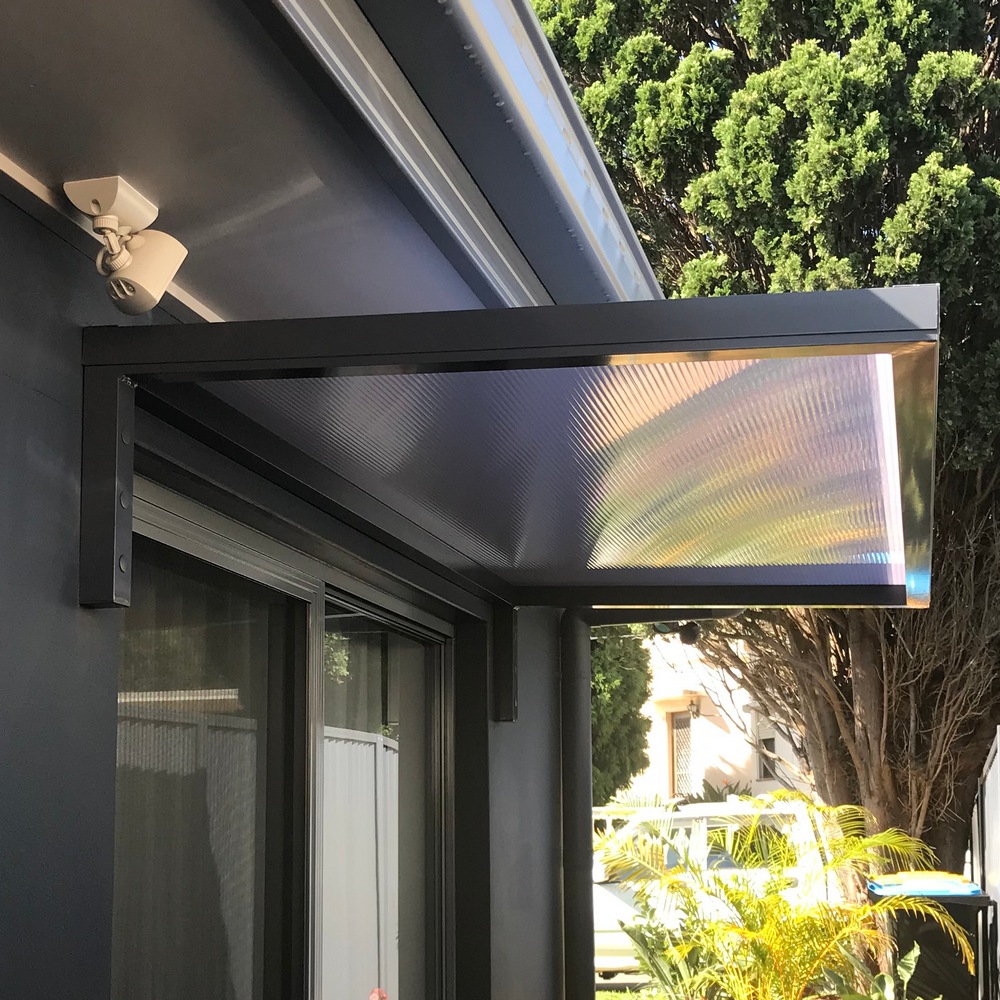

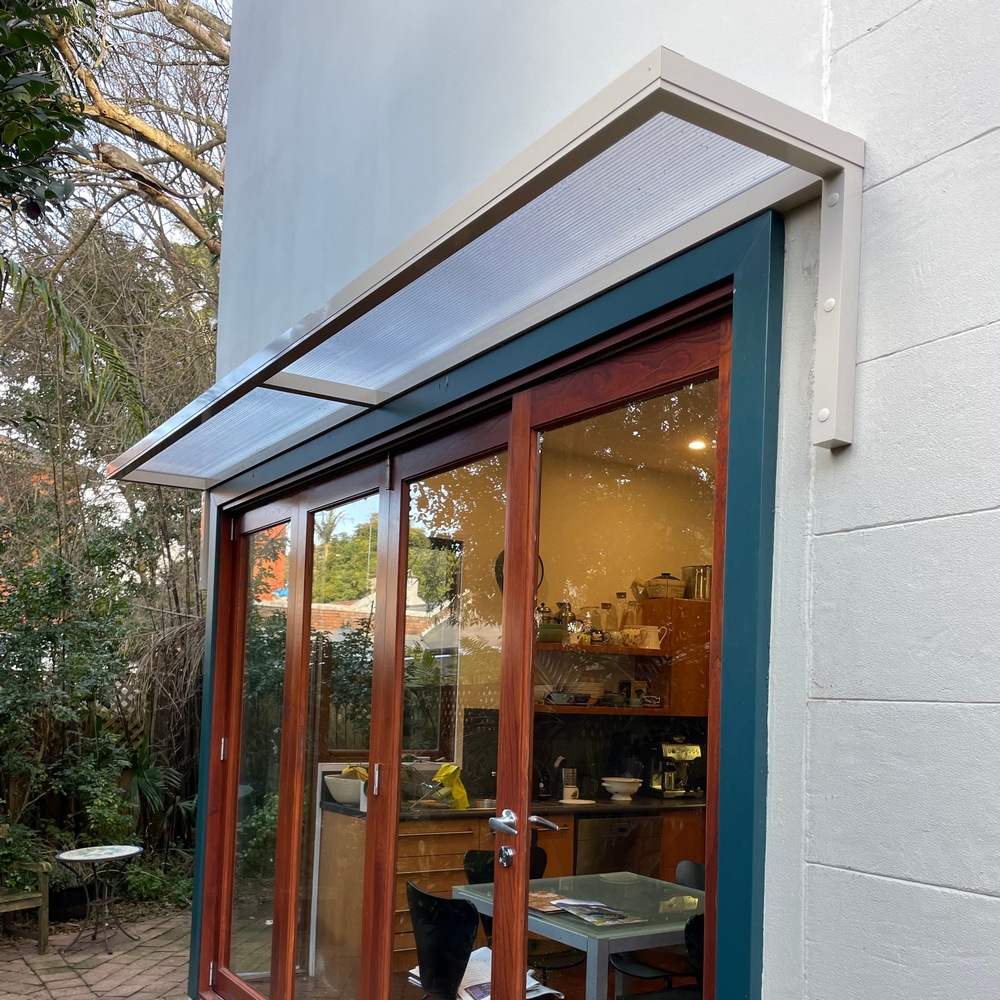

Gallery
Slimline 50
Frame & Arm Construction
The Slimline 50 features a fully welded 50x50mm aluminium box frame, built for strength and a clean, minimal appearance.

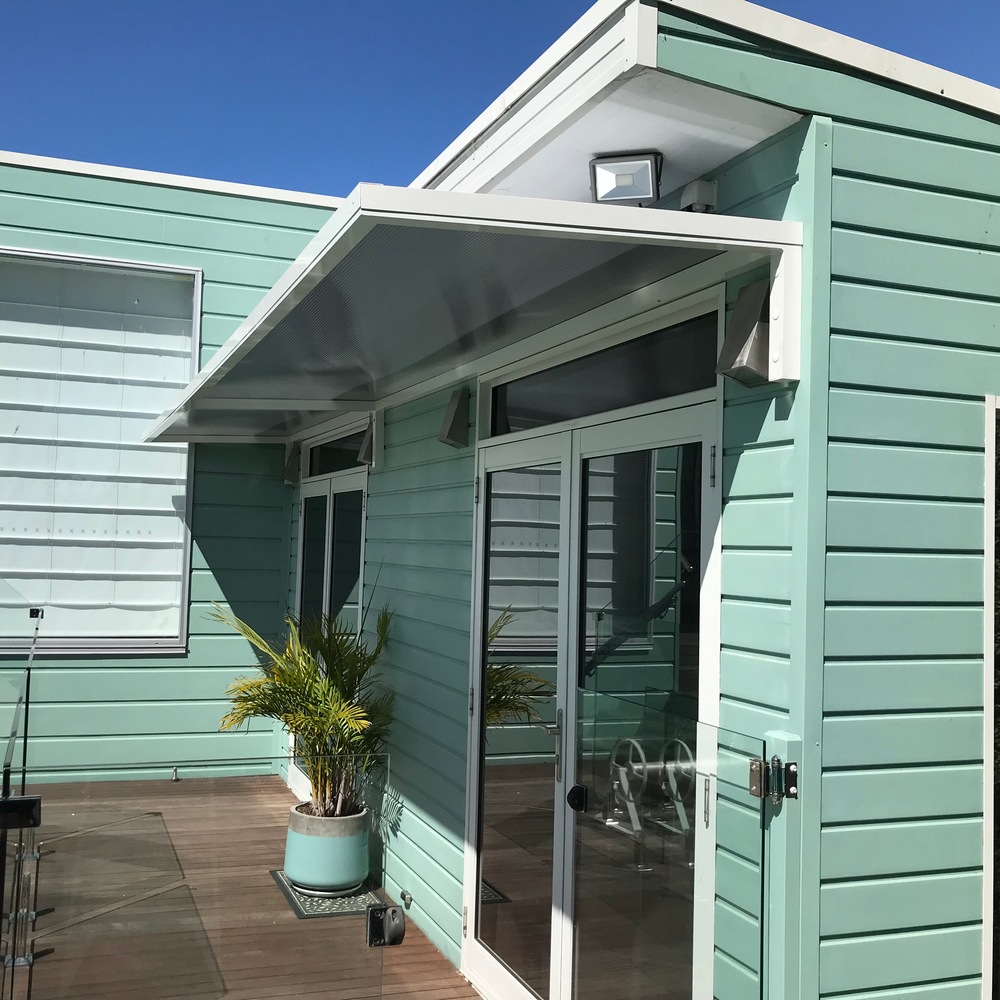

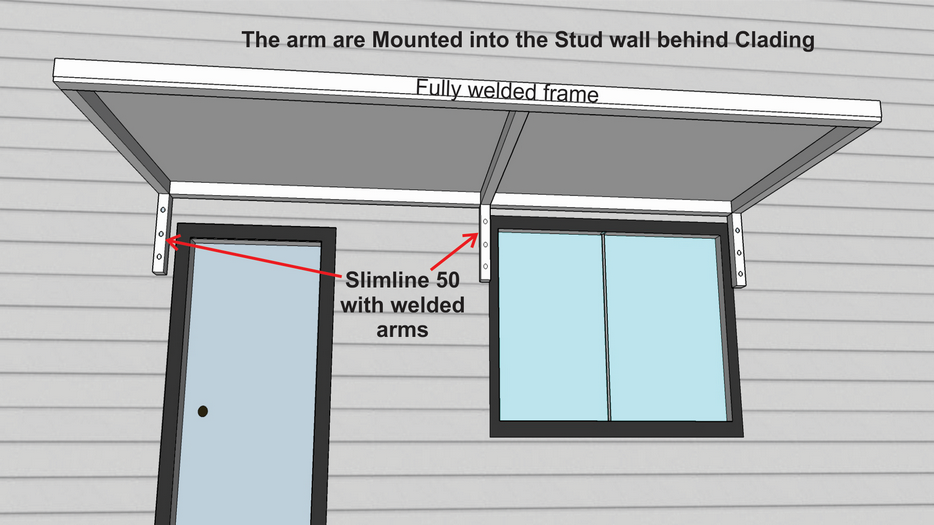

This awning is designed to be fixed through cladded walls into the timber studs behind, making it ideal for situations where you have known stud positions.
Installation Details
Fully welded 50x50mm aluminium box frame
Built for strength and minimal appearance
Fixing through cladded walls into timber studs
Ideal when you know the exact stud positions behind the cladding.

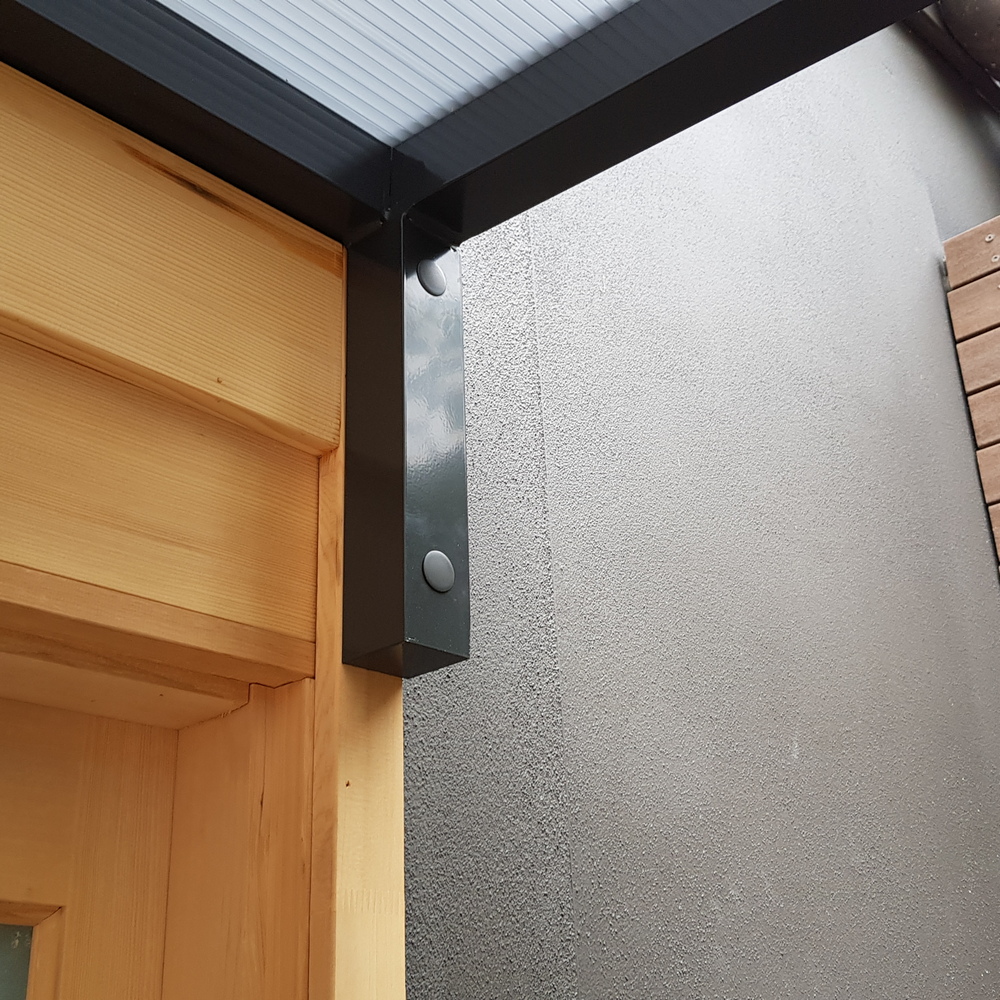

Welded support arms at each end
Provides a sleek, modern look with minimal visible fixings. For a sleeker design, arms are welded,but the stud positions must be known, with one arm at each end and possibly one in the middle for wider awnings
Customisable width to suit stud layout
Ensures arms align with solid fixing points behind the cladding for a secure fit.
Minimal visible fixings
The welded design ensures fewer visible fixings, maintaining a clean aesthetic
Works with your wall structure
Designed to complement and adapt to the structure of your wall, ensuring a strong and streamlined installation.
Polycarbonate Sheeting
Premium 10mm twin-wall polycarbonate:
Sealed directly to the aluminium frame for strength and durability
High impact resistance:
Lightweight yet strong — ideal for awnings in high-wind areas
Double-sided UV protection:
Blocks 99.9% of harmful UV rays while allowing natural light through
Heat reduction properties:
Multiwall design helps lower heat buildup beneath the awning
Acoustic benefits:
Provides sound insulation, reducing noise transfer
Modern colour range:
Available in Solar White, Solar Silver, Grey, Bronze, Clear
Powder Coating Finish
Durable, long‑lasting protection:
Powder coating forms a thick, uniform layer on the finished awning, protecting against corrosion, scratching, UV damage, and weathering
Dulux-grade quality:
We use premium Dulux powders for excellent adhesion, colour retention, and fade resistance in outdoor environments
Precision application process:
Once the awning frame is fully fabricated, it’s cleaned, prepared, then coated with electrostatically charged powder before being heat-cured to create a hard, durable finish
Superior to traditional paint:
The thicker coating resists chipping, peeling, and wear better than liquid paint — ideal for outdoor applications
Wide colour & texture options:
Choose from the full Colorbond® palette, Dulux custom colours, and a variety of finishes including gloss, satin, matte,
Slimline 50
Links to Install guides and powder coat charts
Manufactured in Sydney and supplied direct – custom-made for every project, with no middlemen and no delays.
