Slimline Awnings
Slimline 50 Under Eave Awning
Wall-mounted brackets
hold support arms that extend under the eaves
Arms support the awning panel
keeping the design slim and minimal
Fits to the fascia below the gutter
for a neat, unobtrusive appearance
Awning mounts to both fascia and arms
for a strong, professional finish
Custom-made
with up to 1065mm projection and widths up to 5 metres
Slimline 50
Gallery
Slimline 50

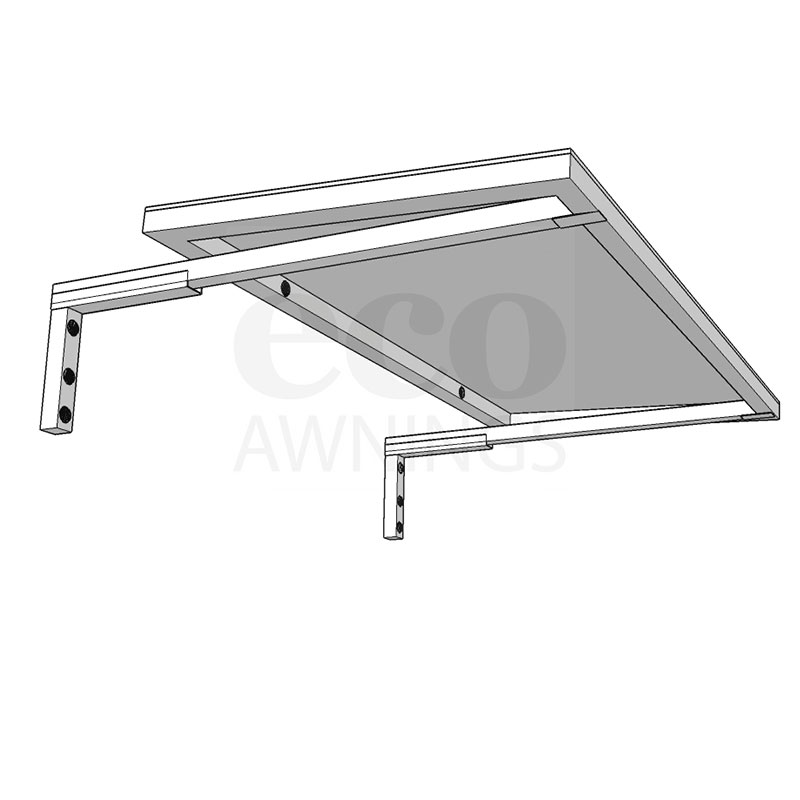

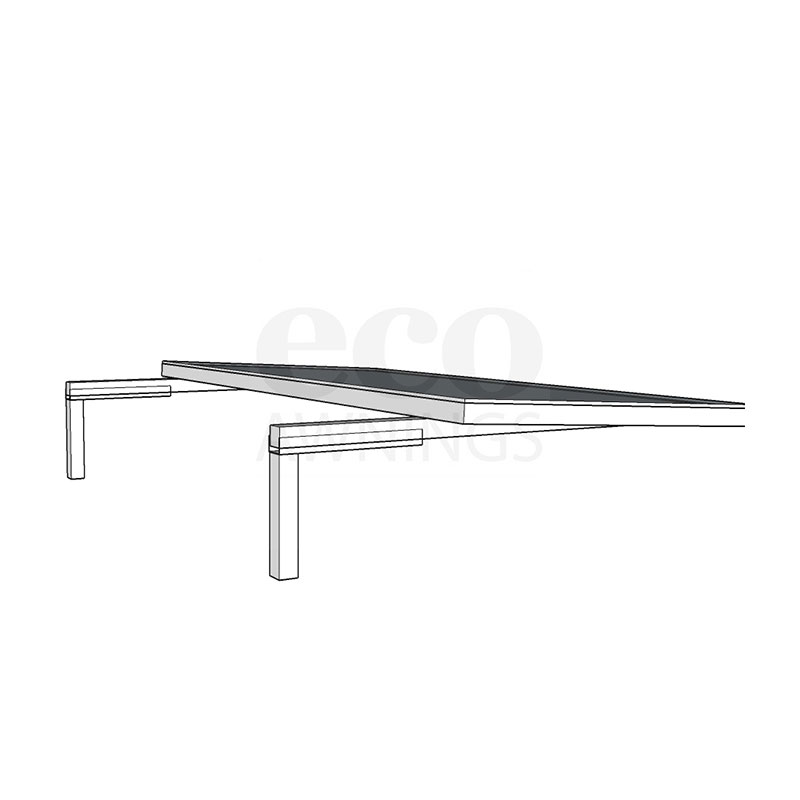

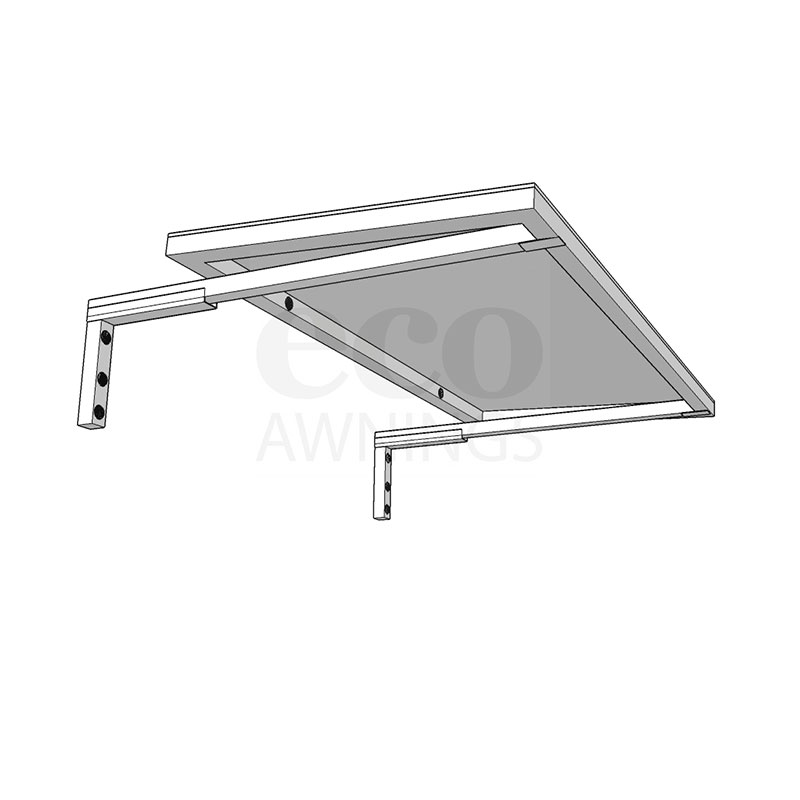

Frame & Fixing Details

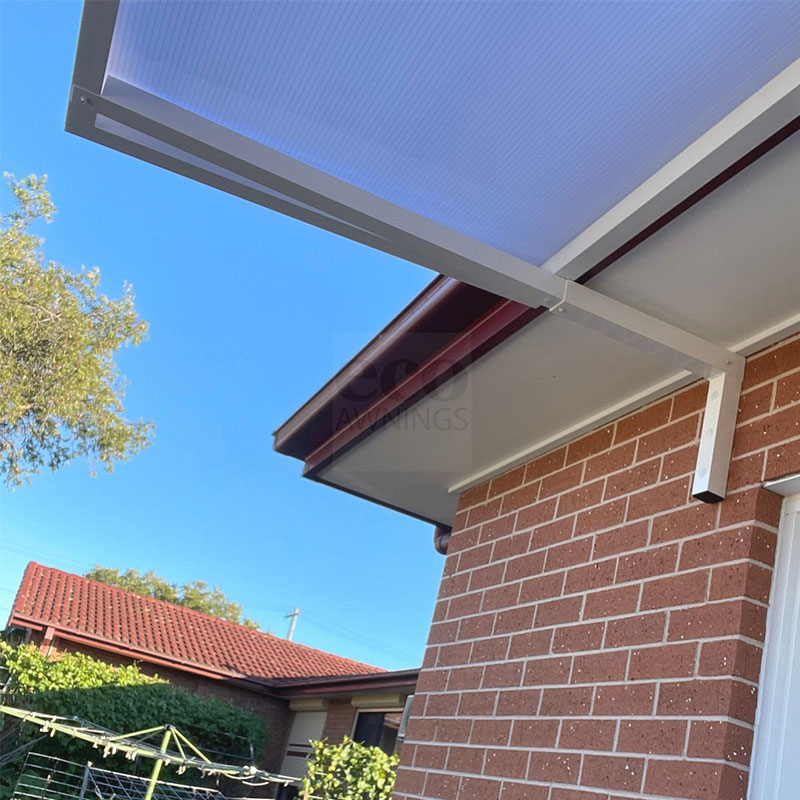

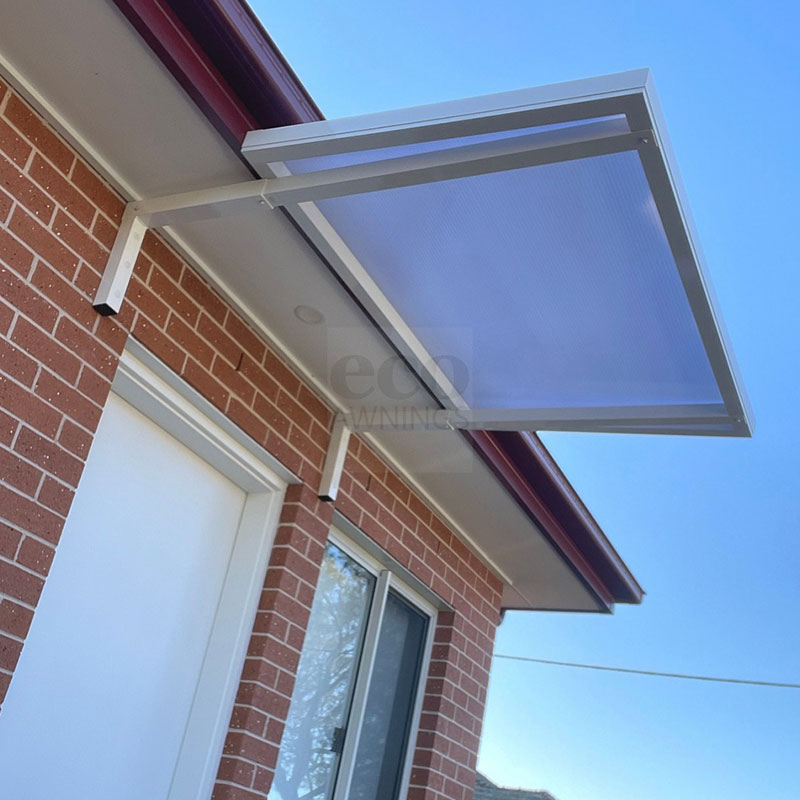

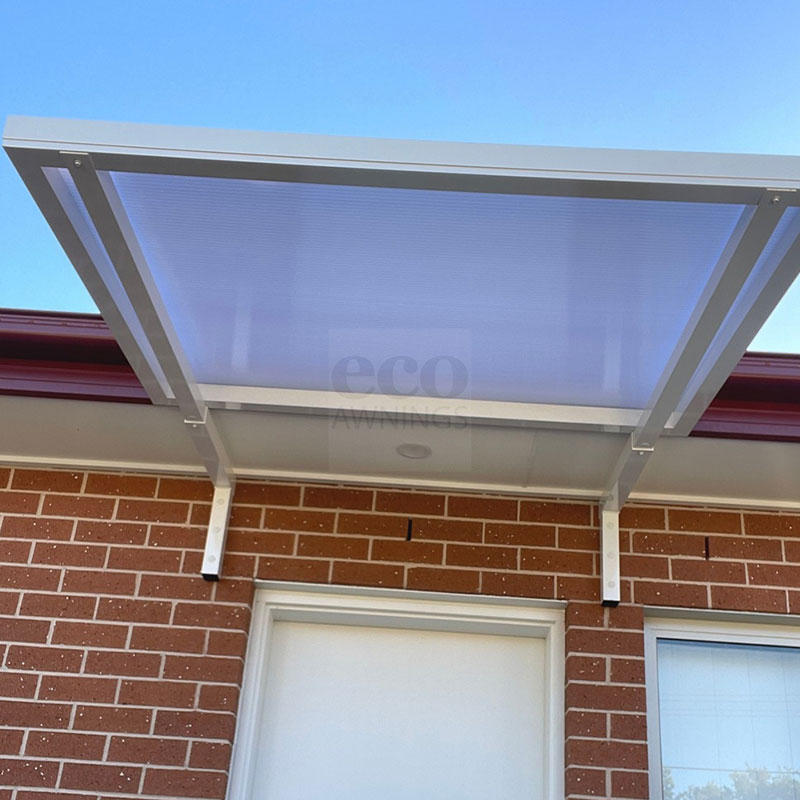

The Slimline 50 Under Eave Awning mounts directly to the wall with brackets supporting cantilever arms that extend beneath the eaves.
The awning panel sits on the arms and is fixed to the fascia just below the gutter.
This design maximises coverage by combining the eave depth with up to 1065mm projection, providing sleek, reliable shelter without the need for posts.
Installation Details
How the Slimline 50 Under Eave Awning is Installed
Wall-mounted brackets provide the main structural support for the awning
- On brick walls, brackets are fixed directly to the masonry, allowing flexible placement.
- On cladded walls, brackets are installed through the cladding and anchored securely into the timber studs behind.
- Brackets are made from high-grade aluminium for strength and durability.
Cantilever arms are mounted directly into the wall brackets.
- The arms project horizontally beneath the eaves, creating a stable support platform for the awning panel.
- Arms are positioned as required along the wall for balanced support.
- This design eliminates the need for posts or bulky supports.

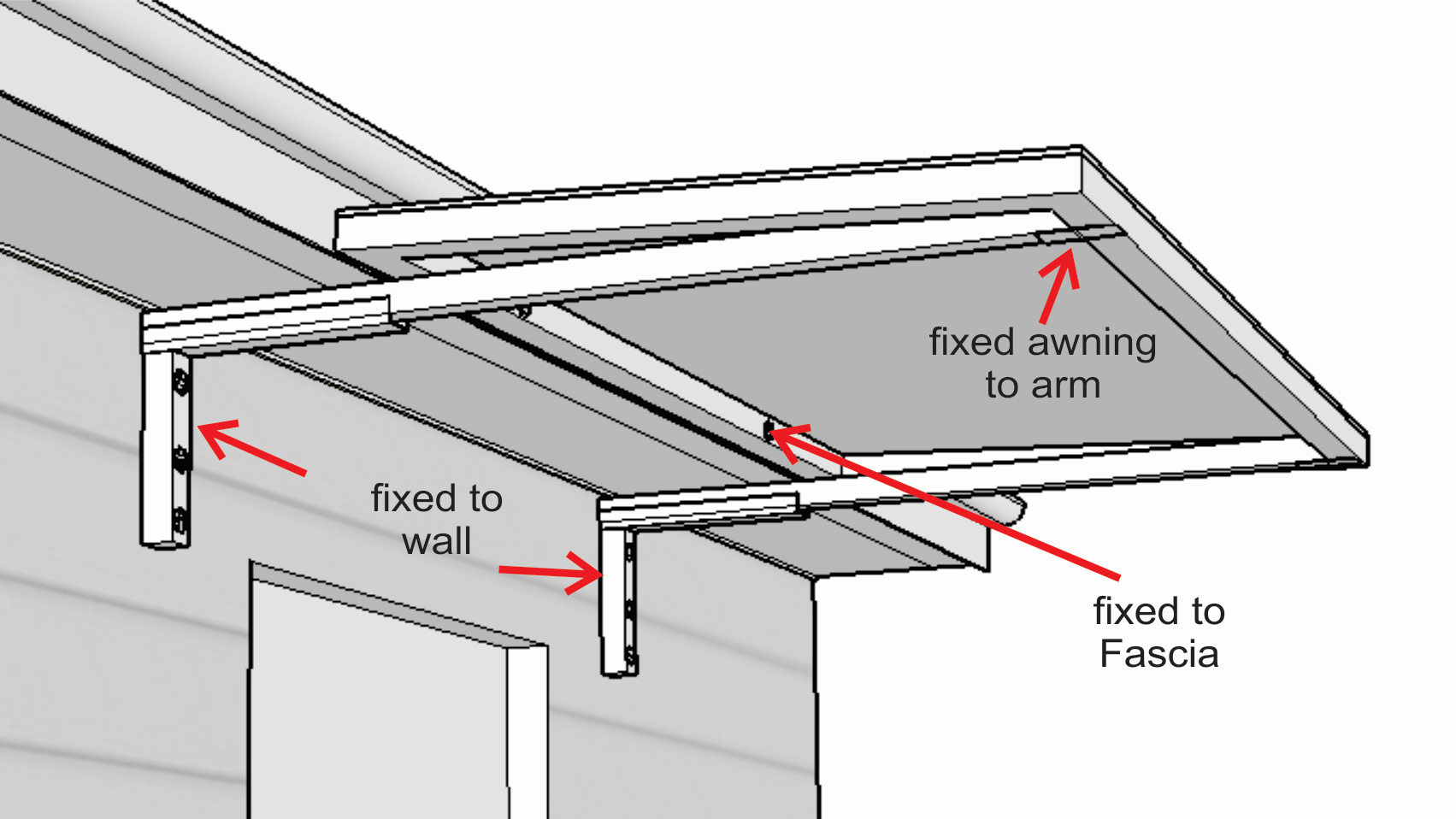

The awning panel is secured at two points:
- At the fascia, mounted directly below the gutter for a neat finish.
- At the front of the cantilever arms, providing solid, balanced support.
This dual mounting system
ensures the awning is rigid, stable, and aligned with the roofline.
The design allows you to combine
The design allows you to combine the depth of the eave with the awning’s maximum 1065mm projection, giving generous coverage.
The installation results in a clean, streamlined appearance
perfect for modern homes where minimal visual impact is key.
The awning is ideal for situations where wall space is limited
such as doorways or windows close to the eave — or when you want to avoid fixing directly into exposed walls.
Polycarbonate Sheeting
Premium 10mm twin-wall polycarbonate:
Sealed directly to the aluminium frame for strength and durability
High impact resistance:
Lightweight yet strong — ideal for awnings in high-wind areas
Double-sided UV protection:
Blocks 99.9% of harmful UV rays while allowing natural light through
Heat reduction properties:
Multiwall design helps lower heat buildup beneath the awning
Acoustic benefits:
Provides sound insulation, reducing noise transfer
Modern colour range:
Available in Solar White, Solar Silver, Grey, Bronze, Clear
Powder Coating Finish
Durable, long‑lasting protection:
Powder coating forms a thick, uniform layer on the finished awning, protecting against corrosion, scratching, UV damage, and weathering
Dulux-grade quality:
We use premium Dulux powders for excellent adhesion, colour retention, and fade resistance in outdoor environments
Precision application process:
Once the awning frame is fully fabricated, it’s cleaned, prepared, then coated with electrostatically charged powder before being heat-cured to create a hard, durable finish
Superior to traditional paint:
The thicker coating resists chipping, peeling, and wear better than liquid paint — ideal for outdoor applications
Wide colour & texture options:
Choose from the full Colorbond® palette, Dulux custom colours, and a variety of finishes including gloss, satin, matte,
Slimline 50

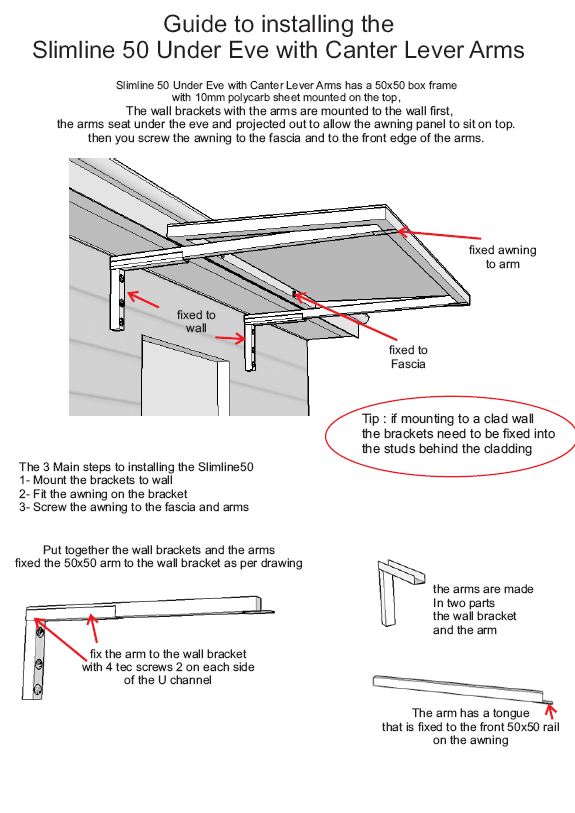

Links to Install guides and powder coat charts
Manufactured in Sydney and supplied direct – custom-made for every project, with no middlemen and no delays.
